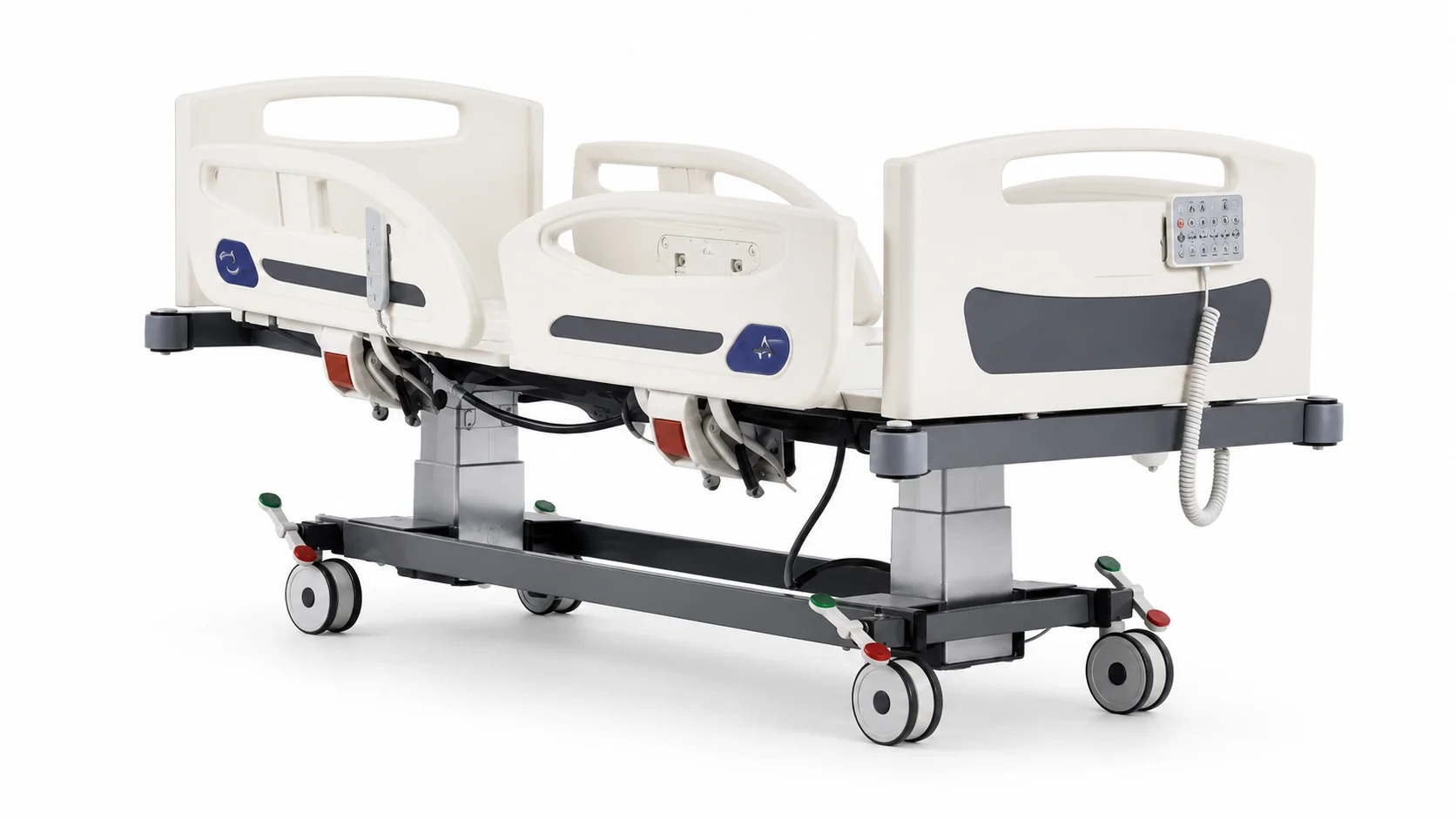

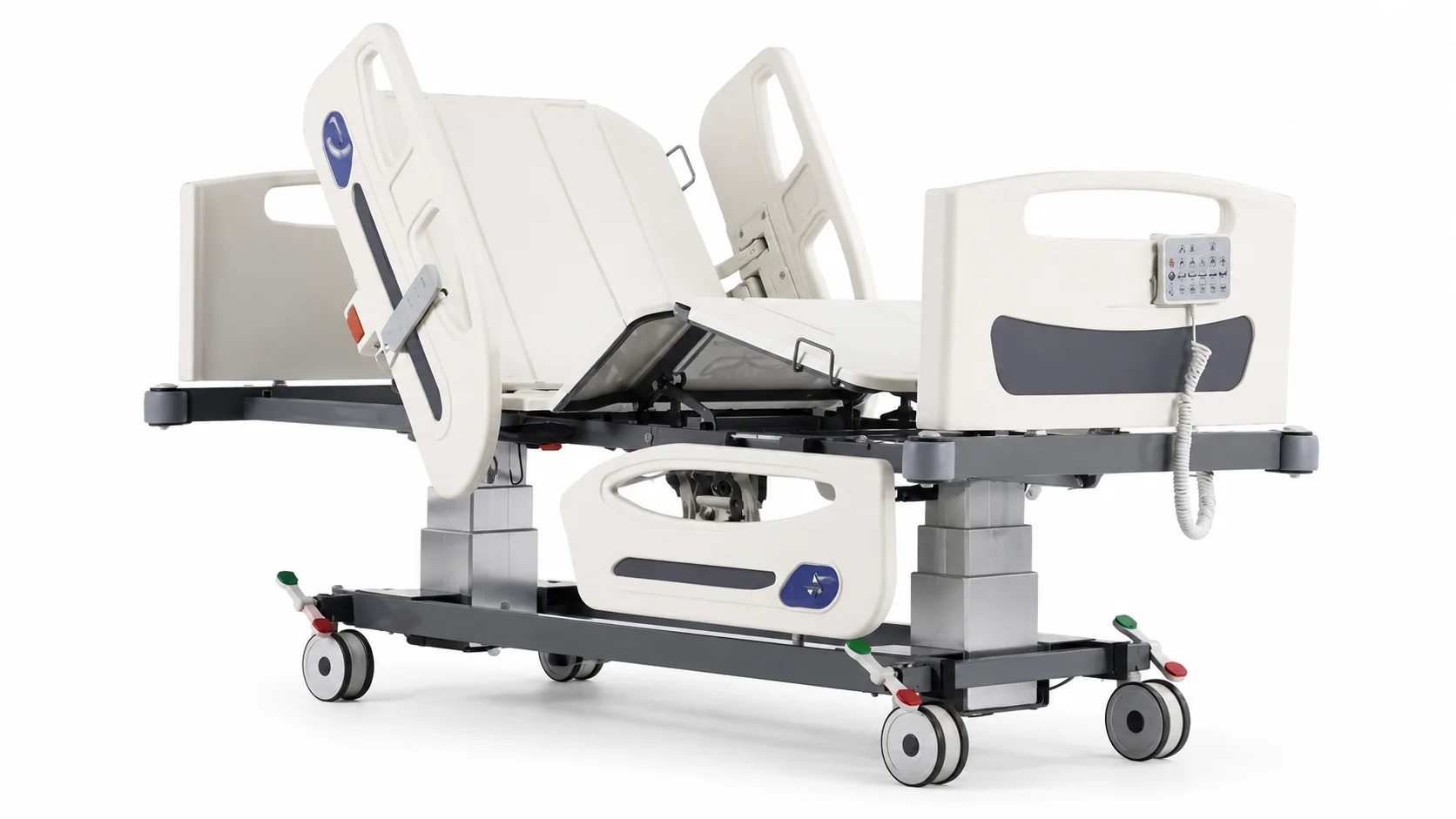

Columnar Motor ICU Bed
Advanced columnar motor technology delivering smooth, stable and precise performance for intensive care environments.
Columnar lift technology supports enhanced stability, smooth vertical adjustment, reduced vibration and reliable ICU performance.
Key Features
- Columnar motor system for height adjustment
- Electrical operated backrest, height and leg-rest adjustment
- Electrical Trendelenburg, reverse Trendelenburg, Fowler and vascular positions
- Auto regression system on backrest
- Auto contour for enhanced patient comfort
- CPR button on hand remote for emergency situations
- Angle indicators on side rails
- Electrical adjustment by wired patient hand remote and foot-end nurse control panel
- Hygienic design (PP), lockable and tuck away side rails
- Central and directional lockable twin castors
- Battery backup system (optional)
Technical Data
| External Dimensions | 1050 x 2150 mm |
| Mattress Platform Dimensions | 850 x 1950 mm |
| Backrest Adjustment | 0° – 70° |
| Leg-rest Adjustment | 0° – 40° |
| Height Adjustment Range | 500 – 750 mm |
| Trendelenburg | 16° |
| Reverse Trendelenburg | 16° |
| Castor Diameter | 150 mm |
| Under Bed Clearance | 150 mm |
| Safe Working Load | 250 kg |
| Power Input | 1.5A max. at 230V AC 50-60 Hz |
| Protection Class | Class I, Type B |
| Liquid Ingress Protection | IPX6 |
