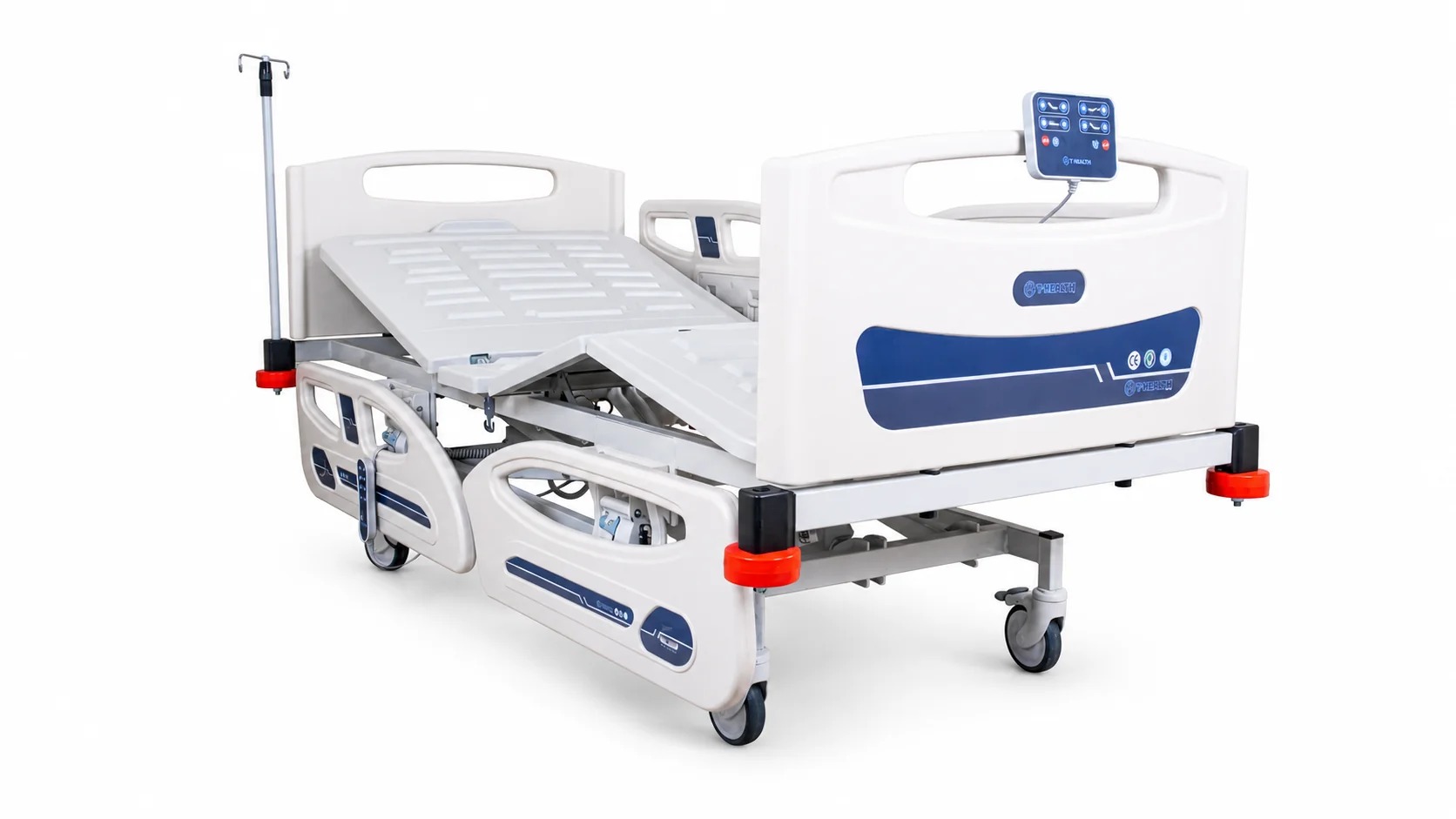

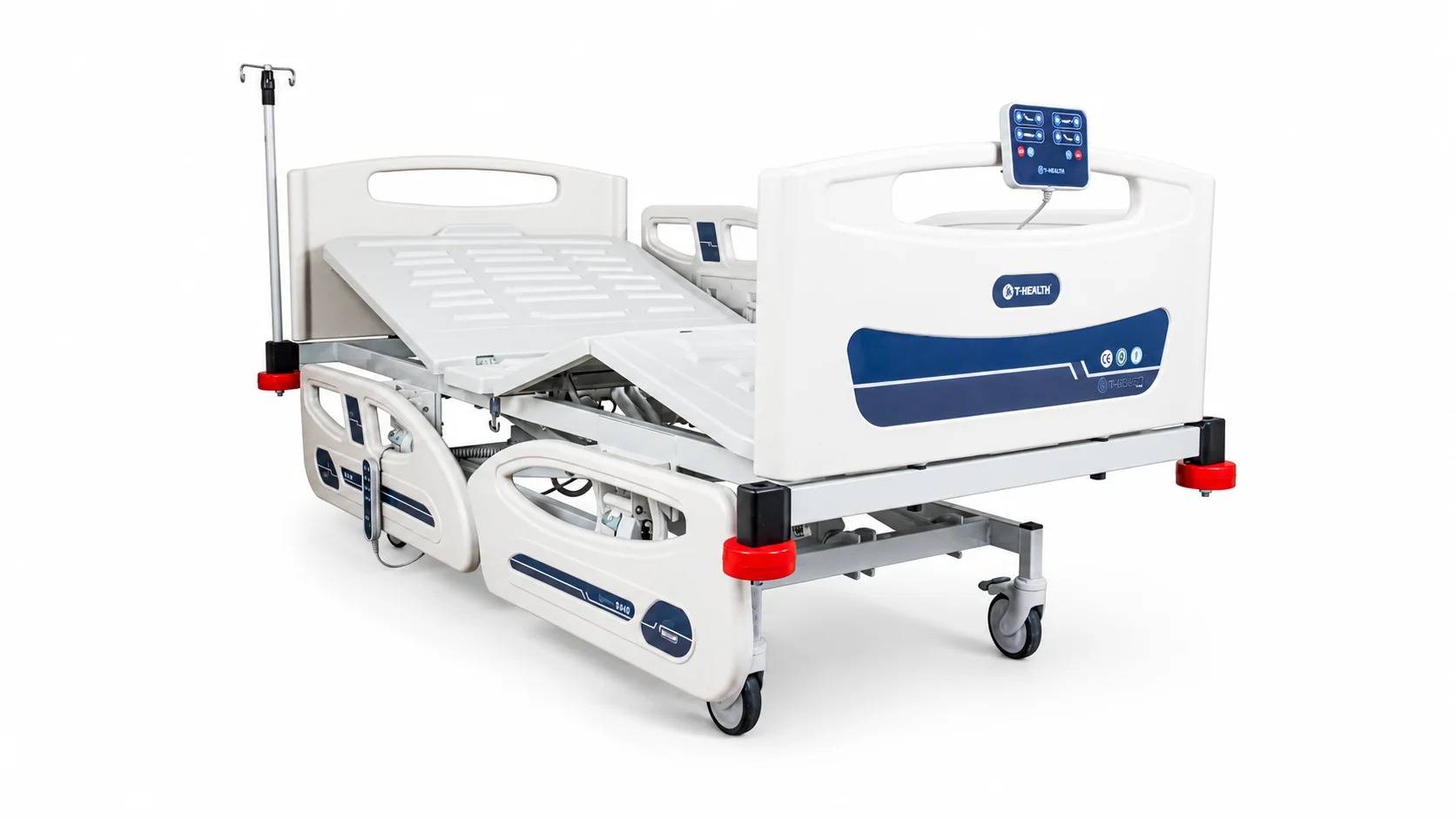

Electronic ICU Bed / 4 Motor
Four-motor intensive care bed designed to meet modern hospital and critical care requirements with advanced positioning, patient safety and caregiver accessibility.
Key Features
- Four motor system

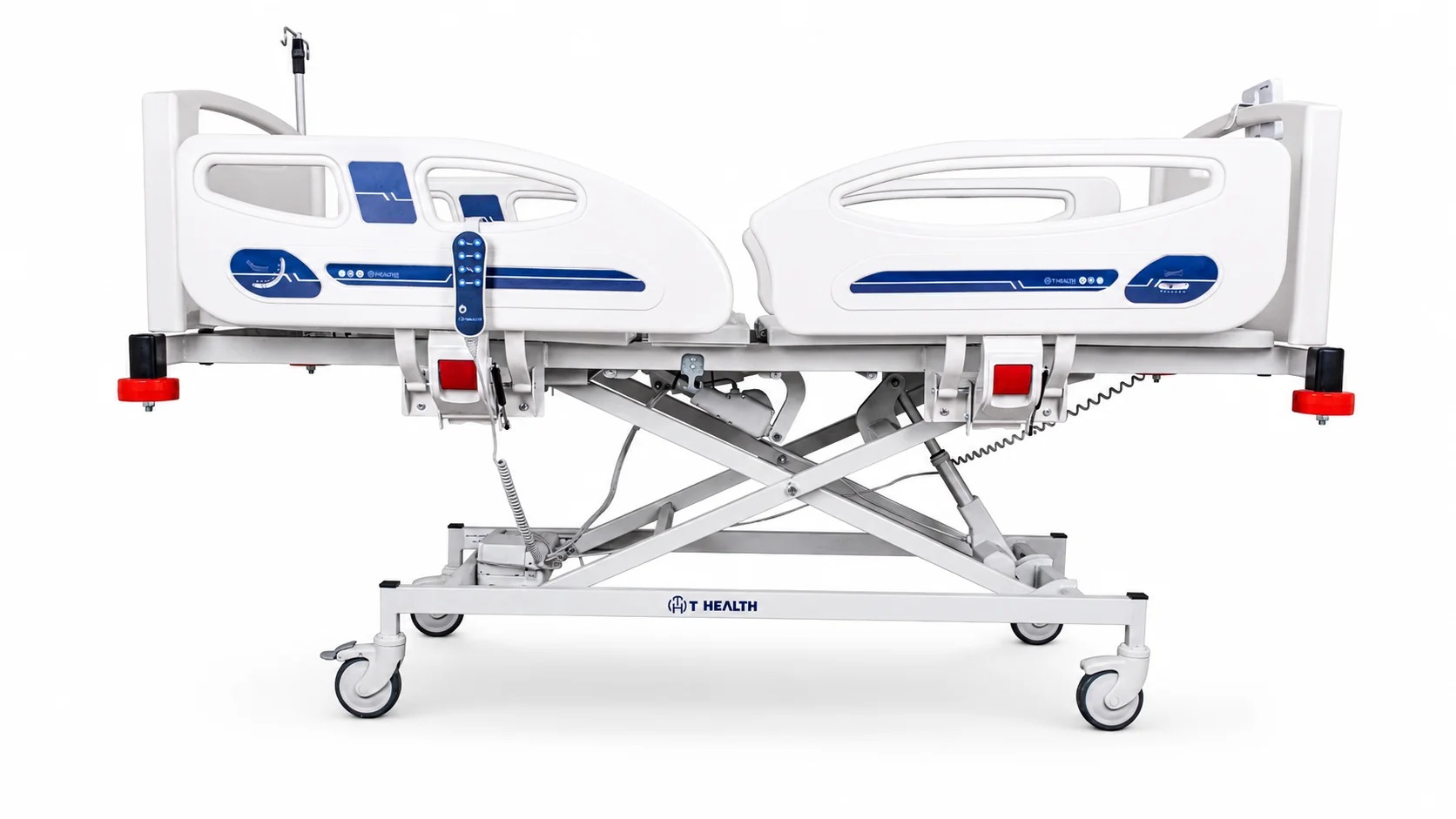

- Electric height adjustment

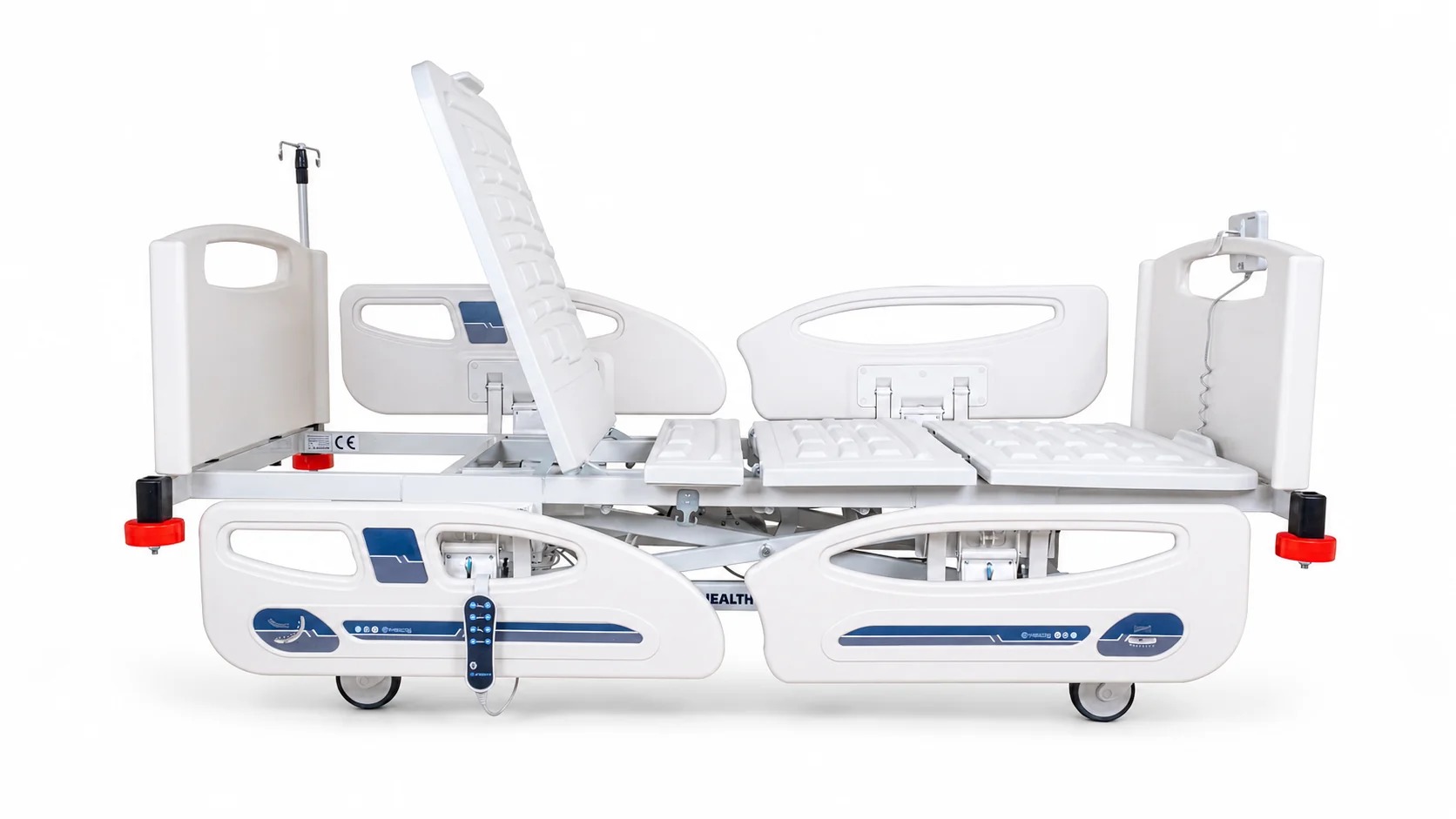

- Electric backrest adjustment

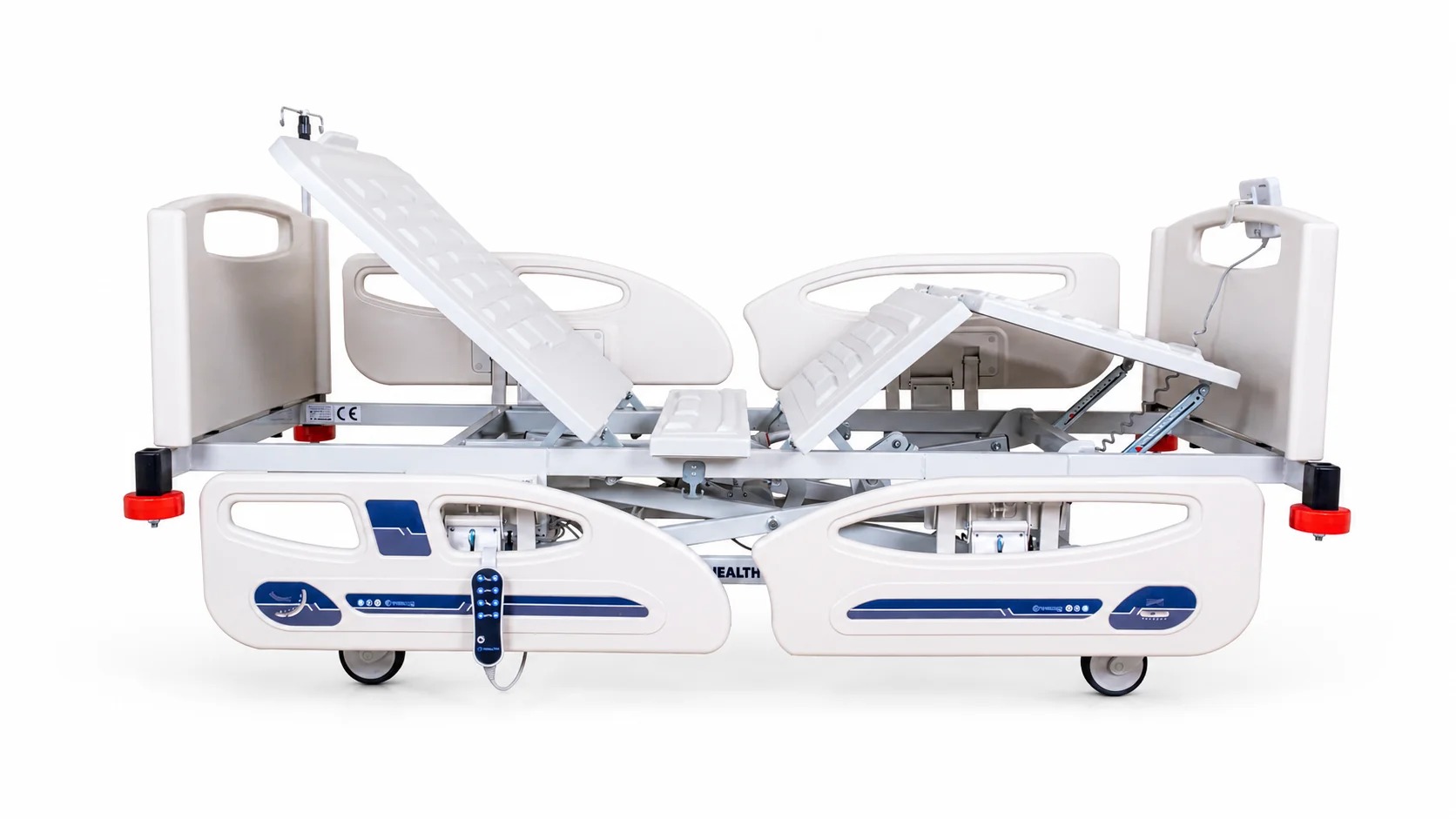

- Electric leg rest adjustment
- Trendelenburg and reverse Trendelenburg
- Auto regression system on backrest and foot-rest
- Auto contour function
- Lockable and foldable side rails
- Detachable ABS head and foot boards with locking mechanism
- CPR emergency function at hand remote
Technical Data
| External Dimensions | 1050 x 2150 mm |
| Mattress Platform Dimensions | 850 x 1950 mm |
| Height Adjustment Range | 450 – 850 mm |
| Backrest Adjustment | 0° – 70° |
| Foot-rest Adjustment | 0° – 35° |
| Trendelenburg / Reverse Trendelenburg | ±15° |
| Castor Diameter | 125 mm |
| Safe Working Capacity | 250 kg |
| Power Input | 1.5A max. at 230V AC 50-60 Hz |
| Protection Class | Class I, Type B |
| Liquid Ingress Protection | IPX6 |
Optional Accessories
- Foot-end nurse control panel
- Bed side extension
- Linen holder
- Twin castors
- Patient lifting pole
- Oxygen bottle holder
- Integrated control panel
- Manual CPR at backrest
- 5th castor
- Central and directional lockable castors, 150 mm
- Paper roll hanger
