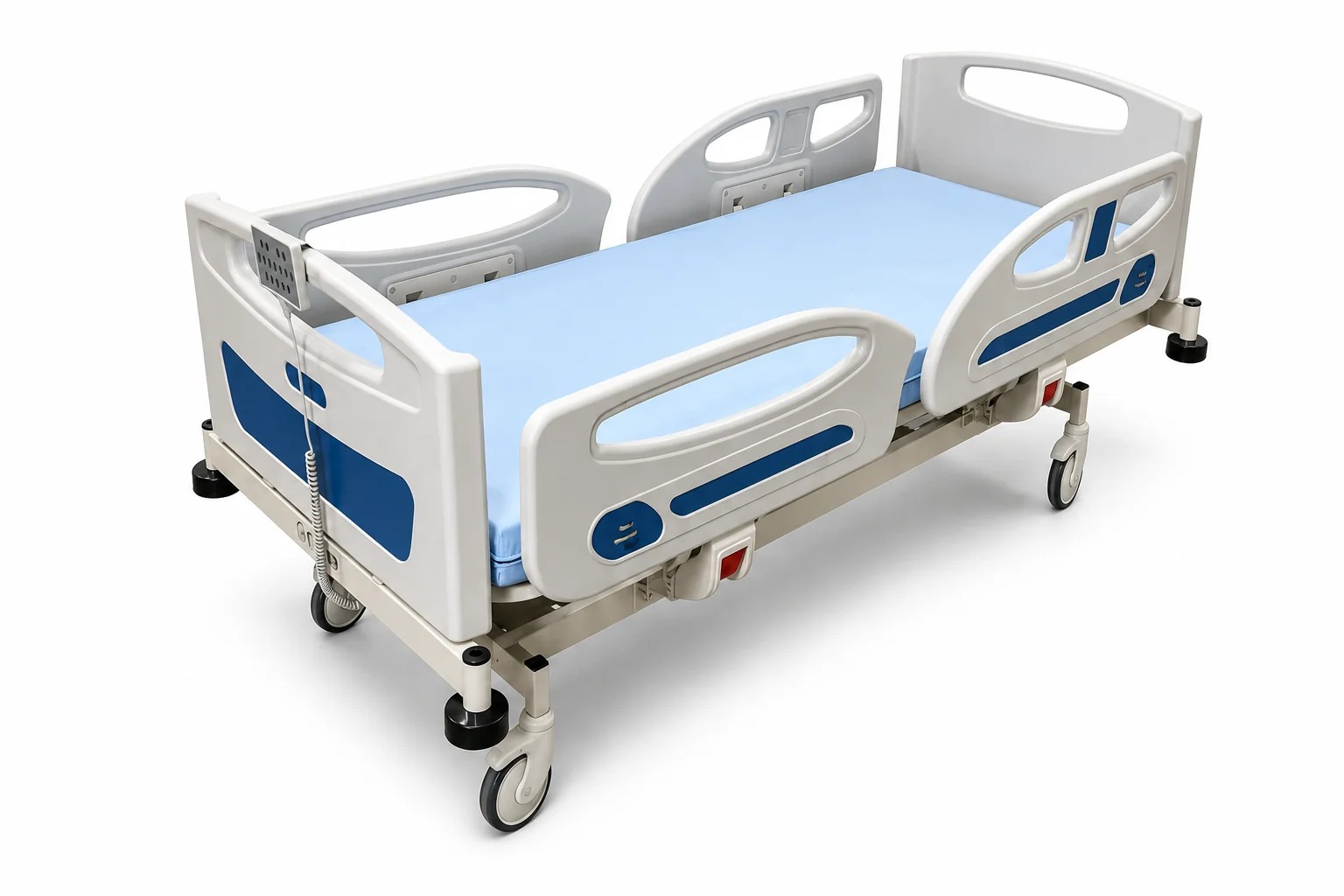

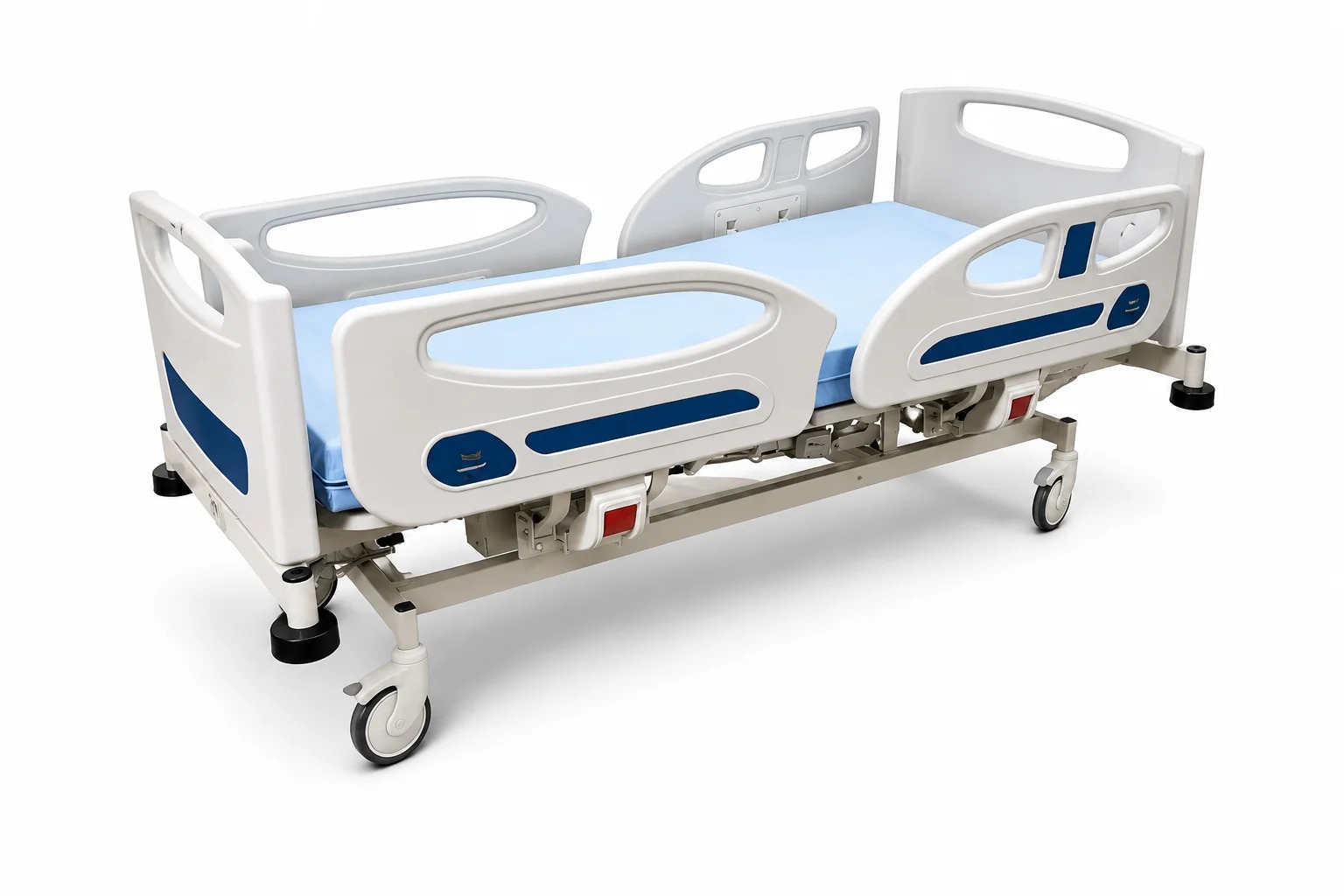

T 8020 / 2 MOTOR ELECTRONIC PATIENT BED

–          Electrical operated backrest and  leg-rest adjustment

–          Electrical operated Fowler and vascular positions

–          Patient handset

–          Auto regression system on back and foot sections

–          Auto contour

–          Hygienic design (PP), lockable and fold down side rails

–          4 section easy removable ABS mattress platform

–          Removable headboard and footboards

–          Diagonal lockable single castors

–          Electrostatic painted metal frame

–          Height adjustable stainless steel IV pole

–          Easy adjustable knee break position

–          Plastic crash bumpers on each corner

–          Angle indicators

–          CPR button at remote control for emergency situations

–           Gradually adjustable foot section by ratchet mechanism



TECHNICAL PARAMETERS:

–          External Dimensions: 1060 x 2150 mm.

–          Mattress Platform Dimensions: 850 x 1950 mm.

–          Backrest Adjustment: 0˚ – 70˚

–          Footrest Adjustment: 0˚ – 40˚

–          Castor Diameter: 125 mm.

–          Safe Load Capacity: 250 kg.

–          Power Input: 1,5A max. at 230V / AC 50-60 Hz

–          Protection Class: Class I / Type B

–          Liquid Ingress Protection: IPX6



OPTIONAL ACCESSORIES:



–          Integrated Control Panel on Side-Rails

–          Foot-end Nurse Control Panel

–          Patient Lifting Pole

–          5th Castor

–          Metallic Mattress Platform

–          Collapsible Metallic Side-Rails

–          Brake Alarm

–          Bed Exit Alarm

–          X-Ray Cassette Holder

–          Manual Bed Size Extension

–          Manual CPR at Backrest

–          Electronic Weighing System

–          Battery

–          150 mm. Central Lockable Castors

–          Twin Castors

–          Monitor Apparatus

–          Monitor Platform

–          Linen Holder

–          Patient Chart Holder

–          Writing Tray

Kategoriler:

Açıklama

–              Electrical operated backrest and leg-rest

adjustment

–              Electrical operated Fowler and vascular positions

–              Patient handset

–              Auto regression system on back and foot sections

–              Auto contour

–              Hygienic design (PP), lockable and fold down side rails

–              4 section easy removable ABS mattress platform

–              Removable headboard and footboards

–              Diagonal lockable single castors

–              Electrostatic painted metal frame

–              Height adjustable stainless steel IV pole

–              Easy adjustable knee break position

–              Plastic crash bumpers on each corner

–              Angle indicators

–              Gradually adjustable foot section by ratchet mechanism



TECHNICAL PARAMETERS:

–              External Dimensions: 1060 x 2150 mm.

–              Mattress Platform Dimensions: 850 x 1950 mm.

–              Backrest Adjustment: 0˚ – 70˚

–              Footrest Adjustment: 0˚ – 40˚

–              Castor Diameter: 125 mm.

–              Safe Load Capacity: 250 kg.

–              Power Input: 1,5A max. at 230V / AC 50-60 Hz

–              Protection Class: Class I / Type B

–              Liquid Ingress Protection: IPX6



OPTIONAL ACCESSORIES:

–              Integrated Control Panel on Side-Rails

–              Foot-end Nurse Control Panel

–              Patient Lifting Pole

–              5th Castor

–              Metallic Mattress Platform

–              Collapsible Metallic Side-Rails

–              X-Ray Cassette Holder

–              Manual Bed Size Extension

–              Manual CPR at Backrest

–              Battery

–              150 mm. Central Lockable Castors

–              Monitor Apparatus

–              Monitor Platform

–              Linen Holder

–              Patient Chart Holder

–              Writing Tray
