T 1110 / 1 CRANK MANUAL WARD BED

–          Electrical operated backrest, height and  leg-rest adjustment

–          Electrical operated Trendelenburg, reverse Trendelenburg,

Fowler and vascular positions

–          Patient handset

–          Auto regression system on back and foot sections

–          Auto contour

–          Hygienic design (PP), lockable and fold down side rails

–          4 section easy removable ABS mattress platform

–          Removable headboard and footboards

–          Central and directional lockable single castors

–          Electrostatic painted metal frame

–          Height adjustable stainless steel IV pole

–          Easy adjustable knee break position

–          Plastic crash bumpers on each corner

–          Angle indicators

–          CPR button at remote control for emergency situations

–           Gradually adjustable foot section by ratchet mechanism



TECHNICAL PARAMETERS:

–          External Dimensions: 1050 x 2150 mm.

–          Mattress Platform Dimensions: 900 x 1950 mm.

–          Backrest Adjustment: 0˚ – 70˚

–          Footrest Adjustment: 0˚ – 40˚

–          Height Adjustment (Without Mattress): 400 – 820 mm.

–          Trendelenburg/Reverse Trendelenburg: ± 15˚

–          Castor Diameter: 150 mm.

–          Safe Load Capacity: 250 kg.

–          Power Input: 1,5A max. at 230V / AC 50-60 Hz

–          Protection Class: Class I / Type B

–          Liquid Ingress Protection: IPX6



OPTIONAL ACCESSORIES:



–          Integrated Control Panel on Side-Rails

–          Foot-end Nurse Control Panel

–          Patient Lifting Pole

–          5th Castor

–          Metallic Mattress Platform

–          Collapsible Metallic Side-Rails

–          Brake Alarm

–          Bed Exit Alarm

–          X-Ray Cassette Holder

–          Manual Bed Size Extension

–          Manual CPR at Backrest

–          Electronic Weighing System

–          Battery

–          150 mm. Diagonal Lockable Castors

–          Twin Castors

–          Monitor Apparatus

–          Monitor Platform

–          Linen Holder

–          Patient Chart Holder

–          Writing Tray

Kategoriler:

Açıklama

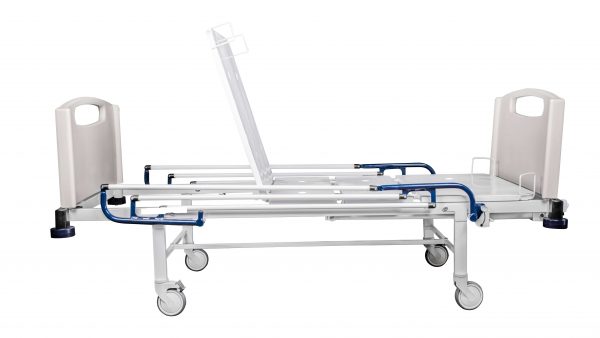

–           Manual operated backrest adjustment by foldable hand cranks

–           Collapsible metallic side rails

–           Epoxy painted tubular steel frame

–            2 section epoxy painted metallic mattress platform with

aeration holes

–           Removable headboard and footboards

–           Cross lockable single castors

–           Electrostatic painted metal frame

–           Height adjustable stainless steel IV pole

–           Plastic crash bumpers on each corner

–           Gradually adjustable foot section by ratchet mechanism



TECHNICAL PARAMETERS:

–           External Dimensions: 1100 x 2170 mm.

–           Mattress Platform Dimensions: 850 x 1950 mm.

–           Backrest Adjustment: 0˚ – 70˚

–           Height of Mattress Platform (Without Mattress): 450 mm.

–           Castor Diameter: 125 mm.

–           Safe Load Capacity: 230 kg.



OPTIONAL ACCESSORIES:

–           Patient Lifting Pole

–           5th Castor

–           ABS mattress platform

–           Hygienic design PP Side-Rails

–           150 mm. Diagonal Lockable Castors

–            150 mm. Central and directional Lockable Castors

–           Monitor Apparatus

–           Monitor Platform

–           Patient Chart Holder

–           Writing Tray
