Developed for advanced emergency and diagnostic environments; combines imaging compatibility, high load capacity and superior patient handling in a single platform.

KEY FEATURES:

• Full-length X-Ray translucent HPL platform
• Sliding X-Ray cassette holder
• C-ARM compatible columnar structure
• 310 kg safe load capacity
• Retractable steering handles at head and feet level
• Foot pedal operated hydraulic height adjustment
• Foot pedal operated Trendelenburg / reverse Trendelenburg adjustment
• Adjustable backrest by gas-spring mechanism

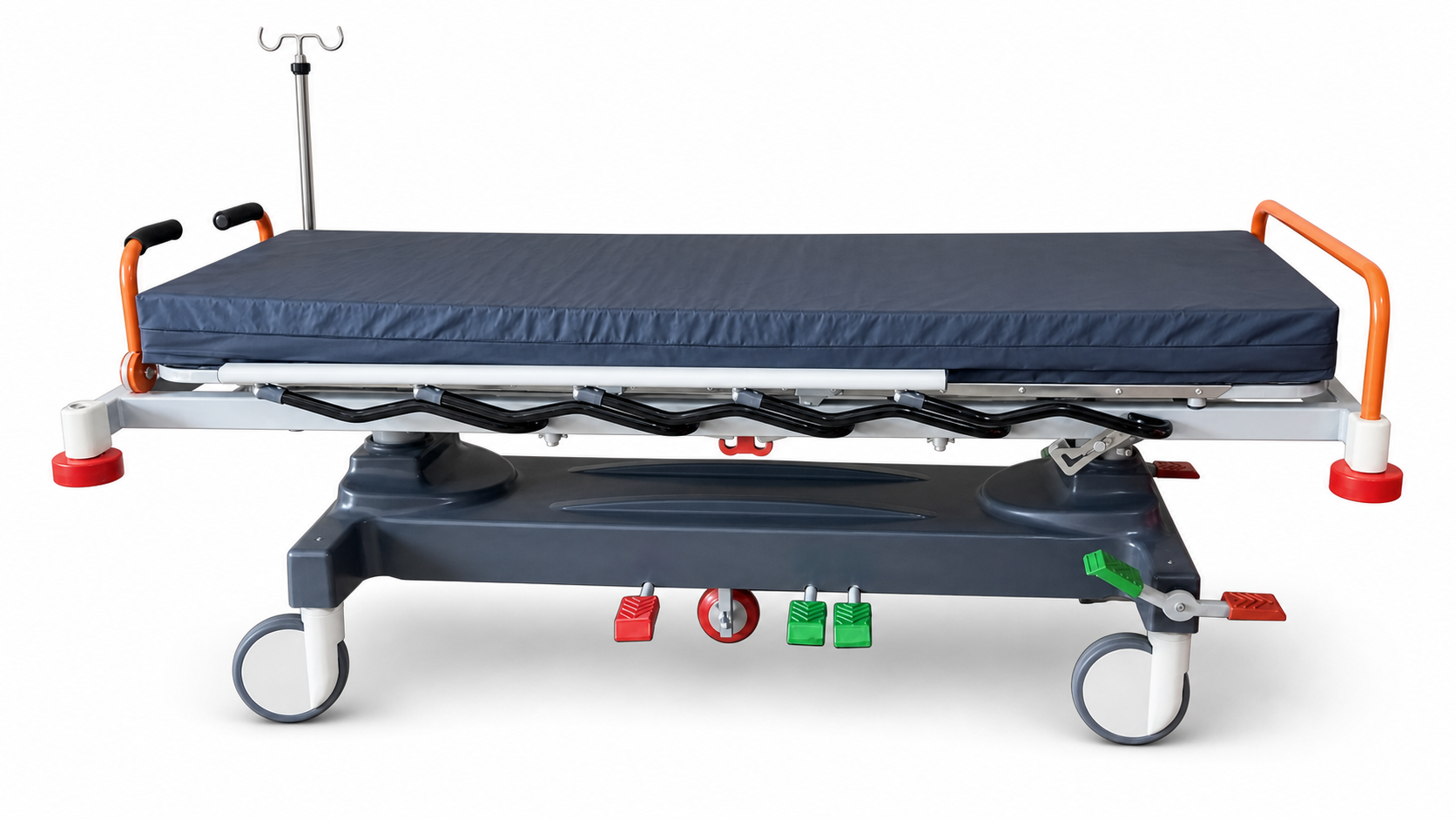

• Telescopic IV Pole
• Central and directional lockable castors
• 5 inch castor for easy maneuverability
• 8 cm thick high density mattress with PU cover
• Large space sub-frame for patient belongings
• O2 tank holder at sub-frame
• Protection bumpers at 4 corners
• Drainage bag holders on both side
• Anti-bacteria treated nano technology epoxy coated metallic main structure
• Glideaway side-rails with anti-pinching mechanism
• Patient safety belt
• Paper roll hanger and accessory rails

TECHNICAL PARAMETERS:

– External Dimensions: 870 x 2090 mm

– Mattress Platform Dimensions: 600 x 1900 mm

– Height Adjustment Range: 60 – 90 cm

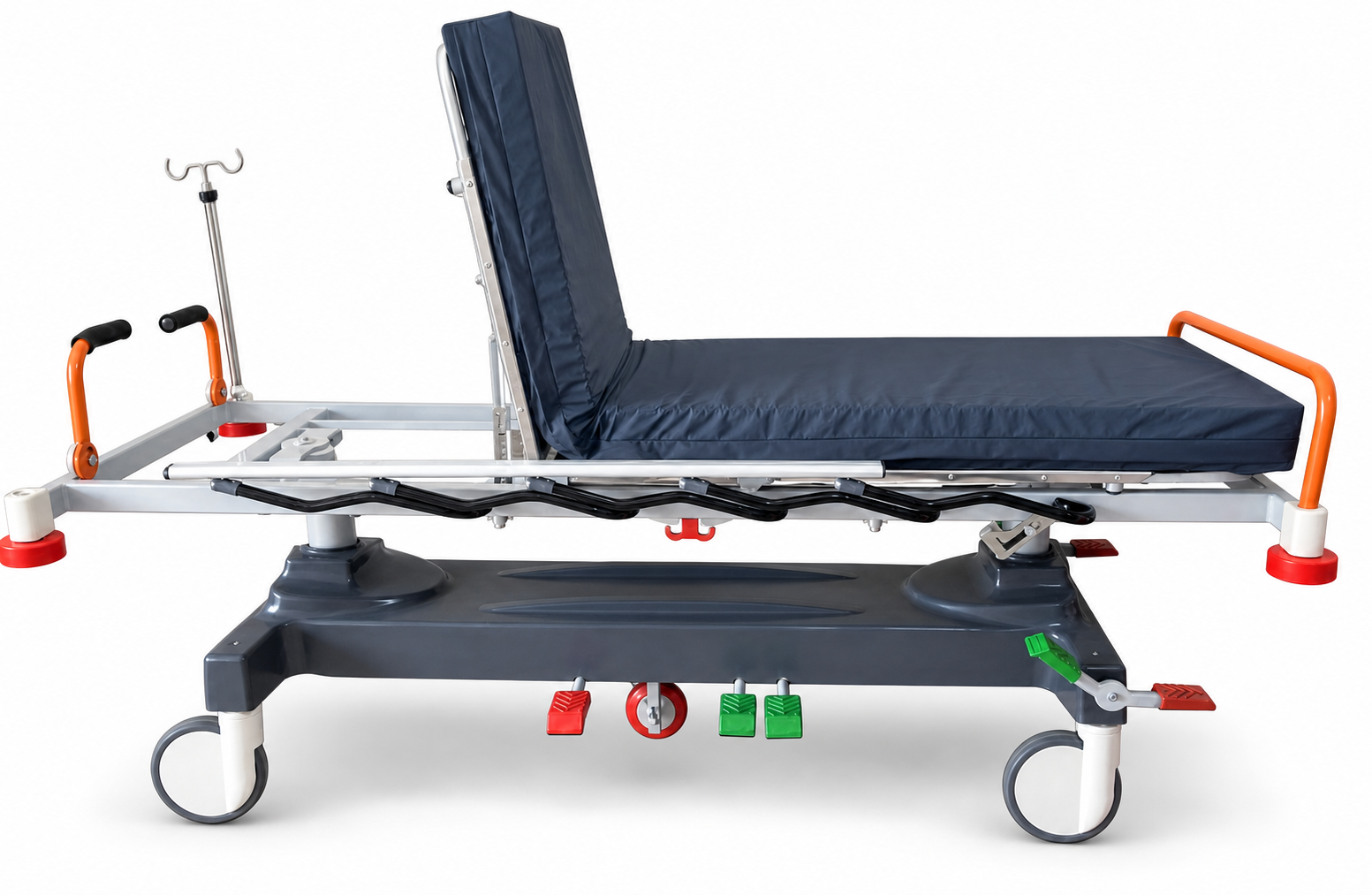

– Backrest Adjustment: 0° – 85°

– Trendelenburg / Reverse Trendelenburg: ± 15°

– Castor Diameter: 200 mm

– Safe Load Capacity: 310 kg
