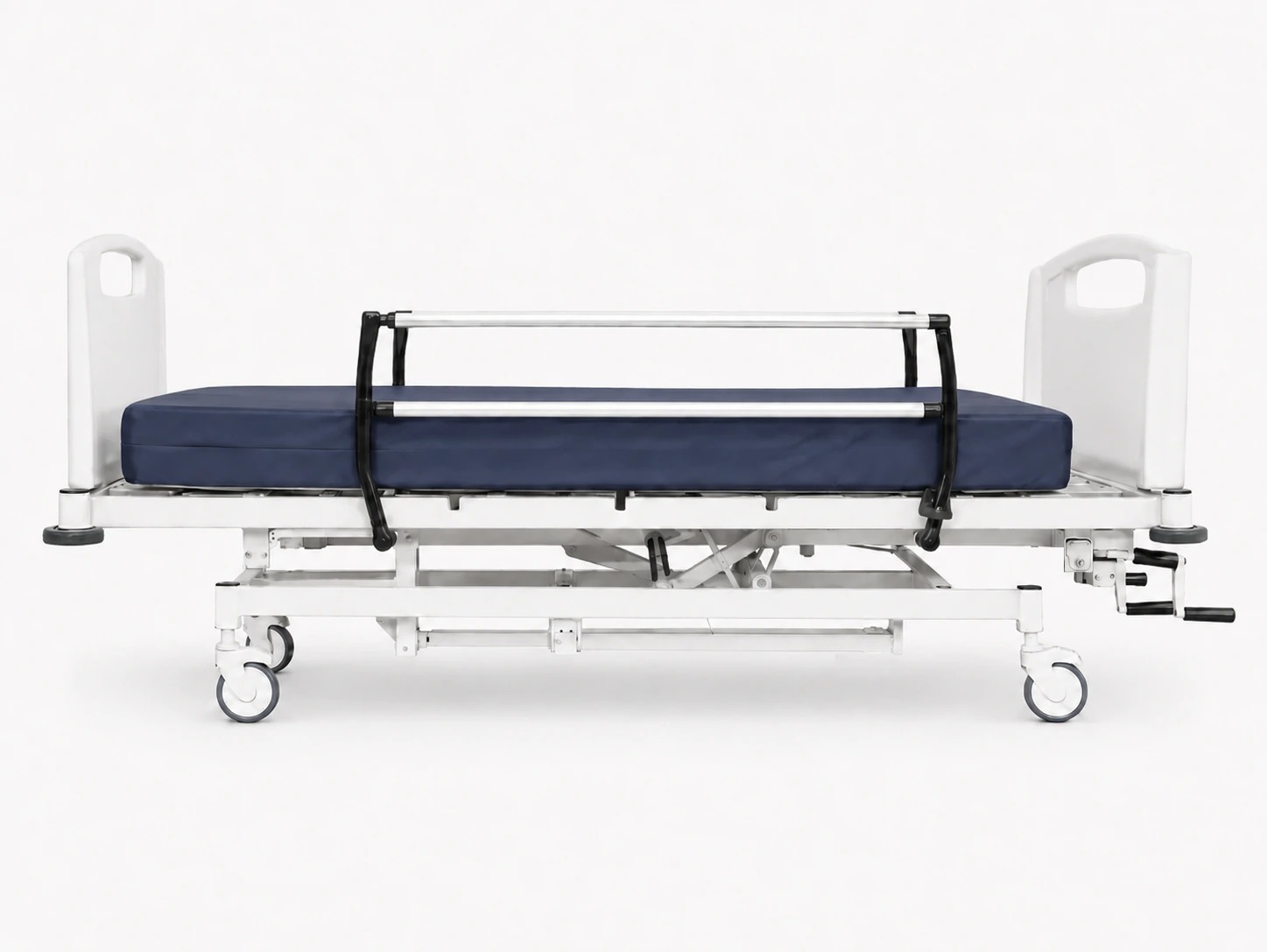

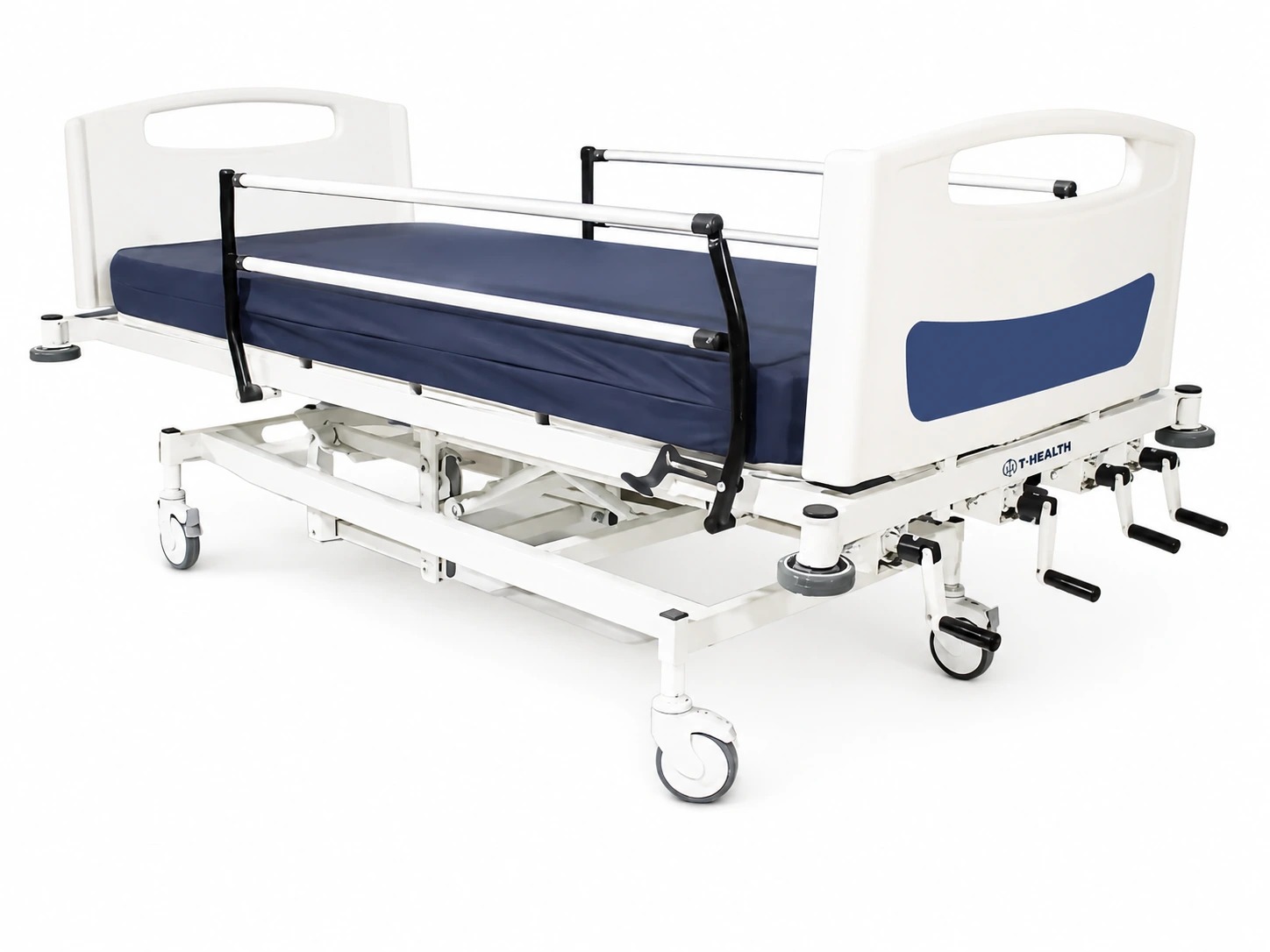

Manual Hospital Bed / 4 Crank
Four crank manual hospital bed solution designed for intensive care and general wards with complete positioning flexibility including Trendelenburg and reverse Trendelenburg.
Key Features
- Manual operated backrest, height and leg-rest, Trendelenburg and reverse Trendelenburg adjustments by foldable hand cranks
- Fowler and vascular positions
- Collapsible metallic side rails
- 4 section electrostatic powder coated metallic mattress platform with aeration holes
- Detachable ABS head and foot boards
- Diagonal lockable single castors
- Height adjustable IV pole
- Easy adjustable knee break position
- Plastic crash bumpers on each corner
- Gradually adjustable foot section by ratchet mechanism
- Electrostatic powder painted ST-37 carbon steel structure
Technical Data
| External Dimensions | 1050 x 2150 mm |
| Mattress Platform Dimensions | 850 x 1950 mm |
| Backrest Adjustment | 0° – 70° |
| Footrest Adjustment | 0° – 35° |
| Height Adjustment Range | 450 – 850 mm |
| Trendelenburg / Reverse Trendelenburg | ±14° |
| Castor Diameter | 125 mm |
| Safe Load Capacity | 230 kg |
Optional Accessories
- Patient lifting pole
- 5th castor
- ABS mattress platform
- Hygienic design PP side-rails
- 150 mm diagonal lockable castors
- 150 mm central and directional lockable castors
- Monitor apparatus
- Monitor platform
- Patient chart holder
- Writing tray
